TOP-350W 80PLUS Power Supply

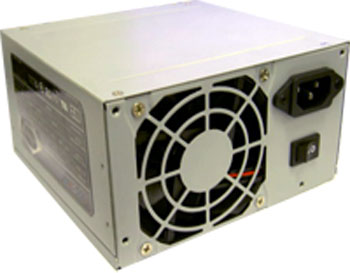

  • TOP-350W80A
  • TOP-350W80B

  • Features
  • Specifications
  • Cables
  • 80PLUS Certified
  • Single 80mm Fan / SECC / *Bulk Pack*
  • Intel ATX 12V 2.3 and EPS
  • Support Dual Core CPU, Quad Core CPU
  • Support Multi-Core GPU
  • Multi 12V rails design to probide superior performance
  • Saftey agency approval: CE, CB, TU, CUL
TOP-350W80
Cable Details
Cable Length(mm)

20 + 4 Pin

400
4 + 4 Pin
400
Molex
400 + *150
SATA
400 + *150
PCI-Express
400

*Measured from base to first connector then to second connector*

DIMENSION (L x W x H)

Metric: 190 x 101 x 41 (mm)
US: 7.5 x 4 x 1.625 (inches)

SPECIFICATION:

Input Voltage
Selector: 100-120 Volts or 200-240 Volts AC
5/2.5 A 60/50 Hz
Output Voltage
+3.3V
+5V
+12V1
+12V2
-5V
+5SB
Max Current Output
21A
21A
11A
14A
0.3A
2.5A
Max Combined Wattage
100W
96W
6W
1.5W
10W
Total Wattage
350W

ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
SATA
X2
Molex 4 pin
X4
FDD
---
6pin
PCI-Express 6 pin
X1



  • Features
  • Specifications
  • Cables
  • 80PLUS Certified
  • Single 120mm Fan / Black / White Box
  • Intel ATX 12V 2.3 and EPS
  • Support Dual Core CPU, Quad Core CPU
  • Support Multi-Core GPU
  • Multi 12V rails design to probide superior performance
  • Saftey agency approval: CE, CB, TU, CUL
TOP-350W80.1
Cable Details
Cable Length(mm)

20 + 4 Pin

400
4 + 4 Pin
400
Molex + FDD
400 + *150
SATA
400 + *150
PCI-Express
400

*Measured from base to first connector then to second connector*

DIMENSION (L x W x H)

Metric: 190 x 101 x 41 (mm)
US: 7.5 x 4 x 1.625 (inches)

SPECIFICATION:

Input Voltage
Selector: 100-120 Volts or 200-240 Volts AC
5/2.5 A 60/50 Hz
Output Voltage
+3.3V
+5V
+12V1
+12V2
-5V
+5SB
Max Current Output
21A
21A
11A
14A
0.3A
2.5A
Max Combined Wattage
100W
96W
6W
1.5W
10W
Total Wattage
350W

ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
SATA
X3
Molex 4 pin
X4
FDD
X1
6pin
PCI-Express 6 pin
X1
