Intel ATX 12v 2.3 and EPS 2.92 compliant.
High efficiency >80% from 20% - 100% load and typical up to 87% efficiency.
Full range input with active power factor correction (PF>0.99).
Design to support Dual / Quad Core CPU, NVIDIA SLI and AMD CrossfireX.
12V1-12V4 design to provide superior performance.
Modularized Cable Management to eliminate clutter and improve airflow inside the case.
ARD cooling technology ensures 22dBA at 500W load (1250 RPM of fan)
Safety agency approval / EMI approvals: CE, CB, TUV, FCC, CUL, CCC and BSMI certified.

ajio

afjsd
ow Dual main transformers
Balance load sharing
Best for high watt design
12V generted from both transformers

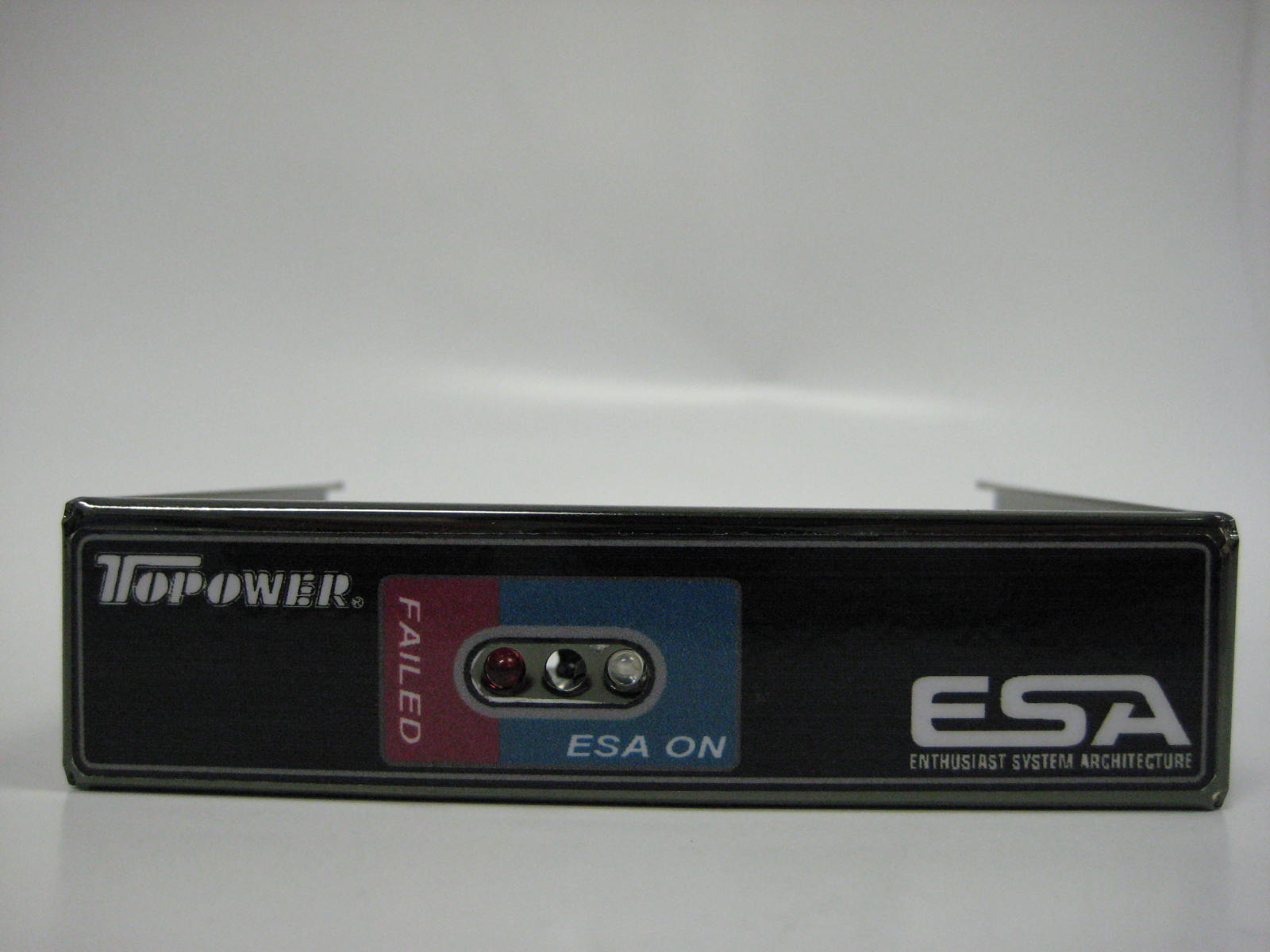

ijo ESA LED Indicator
Red LED will be light if any irregular situation occurred

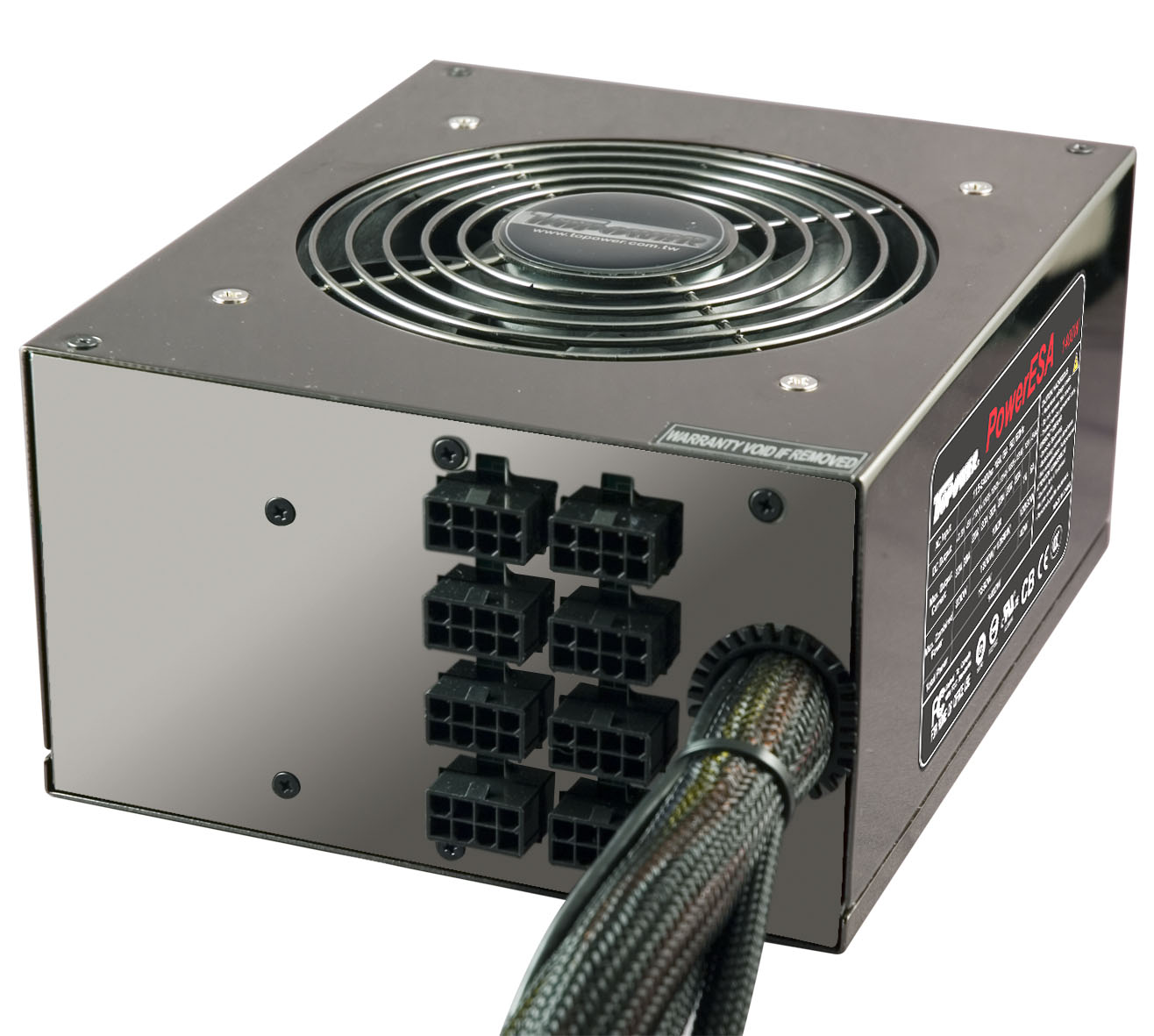

j 8-Bridge Cable Management
Flexible to plug in any bridge
Dual 4 sets of rails design
Eliminate clutter and improve airflow inside the case

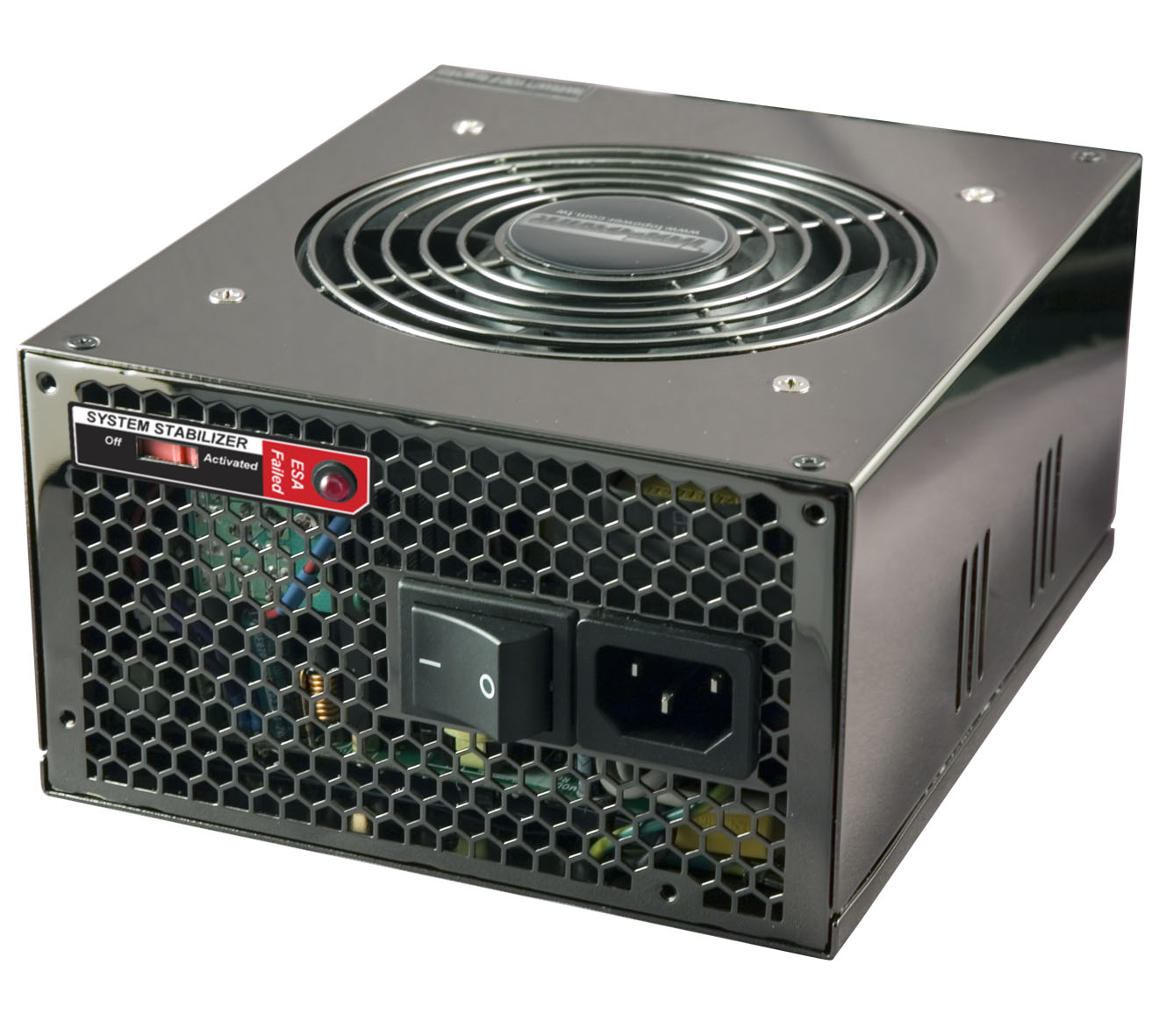

ijo System Stabilizer
Enhanced the performance and compatibility of latest components.
To increase 1-1.6% on the working voltage of 3.3V, 5V and 12V when activated.
ij Embedded ESA Control
To communicate with MB.
To monitor voltage / watt and control.
ijo Interface for ESA
Through USB

conn
ajio
ATX 24pin & 20 pin
X1
aijoag
sajdio
ATX 4+4 pin
X1
ijoagijo
aijo
ATX 4 pin
X1
ijoweaio
aijo
PCI-Express 6+2 pin
X3
ijoawgijo
6pin
PCI-Express 6 pin
X1
aijow
ioawgoaw
SATA
X12
ijoag
afijo
Molex 4 pin
X4
aijow
ajioef
FDD
X1

fajsio
100-120Vac/200-240Vac 10/60A 60/50Hz

PowerESA 850

Voltage

3.3V

5V

12V1

12V2 12V3 12V4

-12V

5Vsb

Max spilt current

26A

26A

20A

20A
20A
20A

0.8A

3.0A

Max combine Power

160W
804W(*864W)
20W
Total Power
850W
