• Form Factor: ATX12V 2.3
• Maximum Wattage: 800W

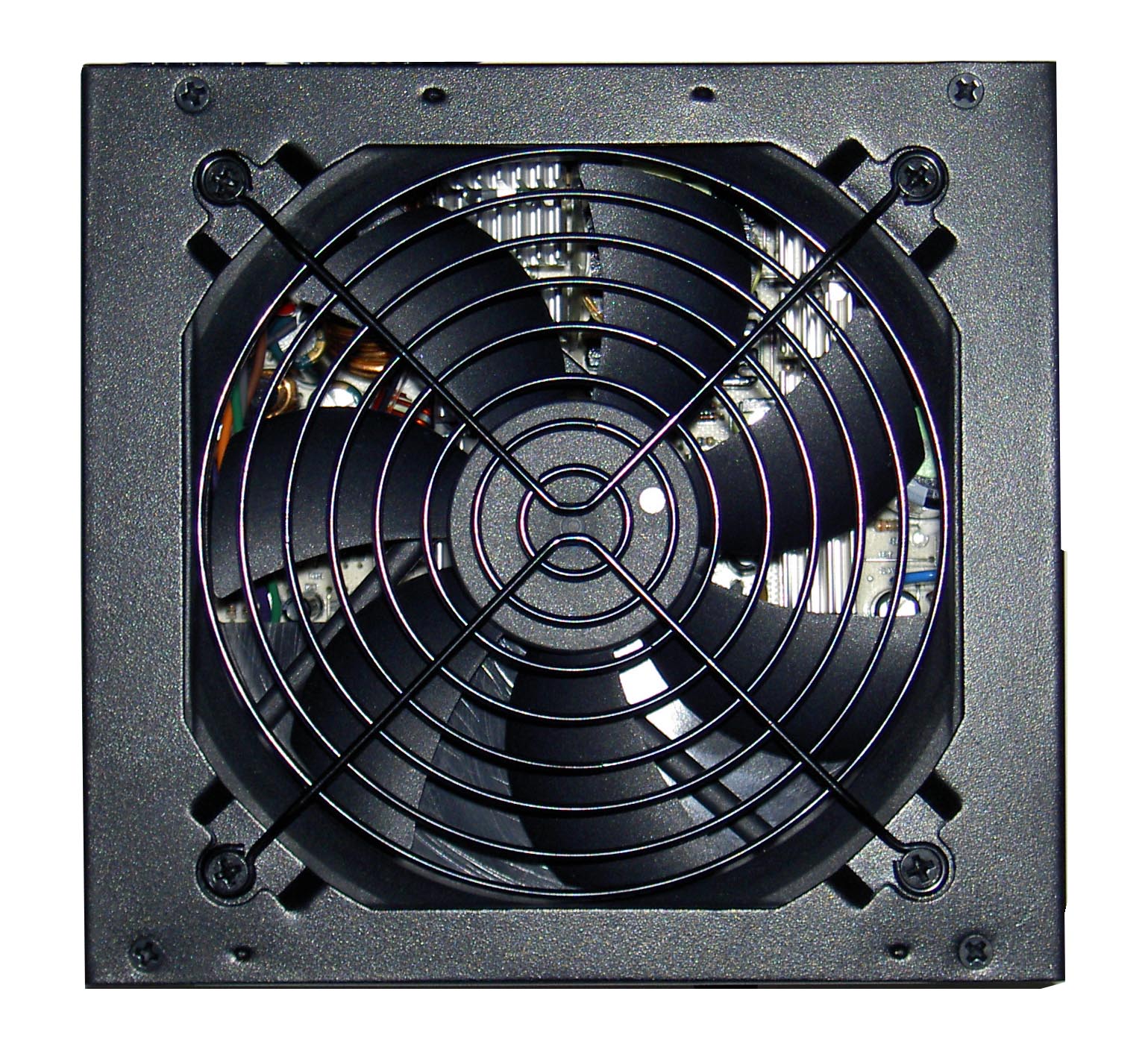

• Single 140 mm Cooling Fan
• 75% Efficiency Rating
• FCC Approval
• 1 year warranty

DIMENSION (L x W x H)

Metric: 157.16 x 150 x 85 (mm)
US: 6.18 x 6.0 x 3.3 (inches)
Weight: 6 lbs ( 2.72 kg)

SPECIFICATION:

Input Voltage	115-230V 60/50hz 10-6A
Output Voltage	+3.3V	+5V	+12V1	+12v2	-12V	+5SB
Max Current Output	26A	26A	20A	20A	0.3A	3.0A
Total Wattage	800W

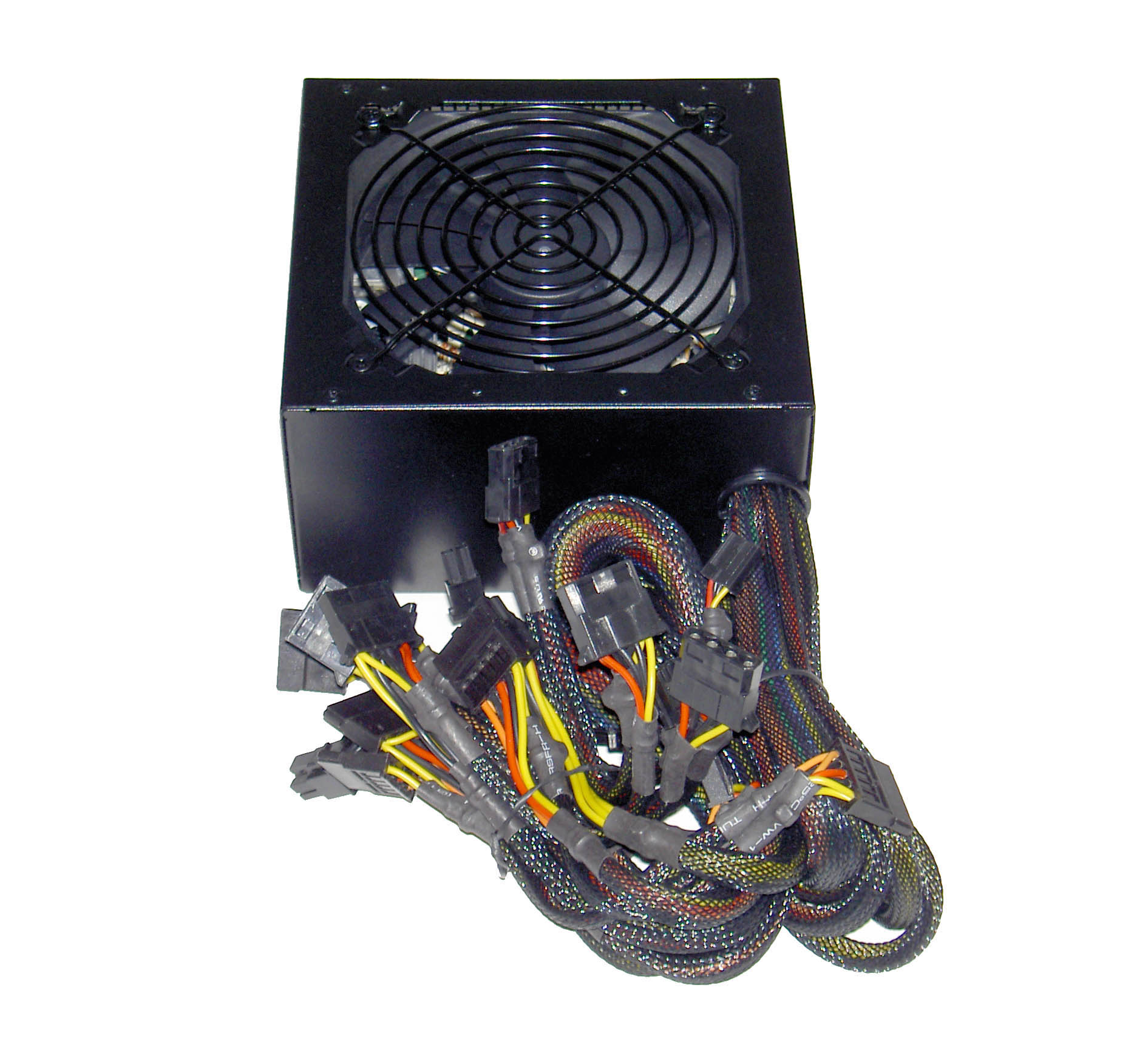

ATX 24pin & 20 pin X1 ATX 4+4 pin X1 PCI-Express 6+2 pin X2 PCI-Express 6 pin X2 SATA X8 Molex 4 pin X8 FDD X2
