500WPM Power Supply


TOP-500PM










  • Features
  • Specifications
  • Cables
  • Form Factor: ATX12V 2.3
  • Maximum Wattage: 500W
  • Manual AC input switch
  • Low ripple and noise
  • Output over voltage protection
  • Short circuit protection on all outputs
  • Single 120 mm Black Long Life Nano Bearing Fan
  • UL, TUV, CB, CE, FCC, RoHs Approval
  • 1 year warranty

DIMENSION (L x W x H)

Metric: 150 x 86 x 140 (mm)
US: 6 x 3 3/8 x 5 1/2(inches)
Weight: 5 lbs ( 2.26 kg)

SPECIFICATION:

Input Voltage
115-230V 60/50hz 10-6A
Output Voltage
+3.3V
+5V
+12V1
+12v2
-12V
+5SB
Max Current Output
20A
20A
20A
20A
0.5A
2.5A
Total Wattage
500W

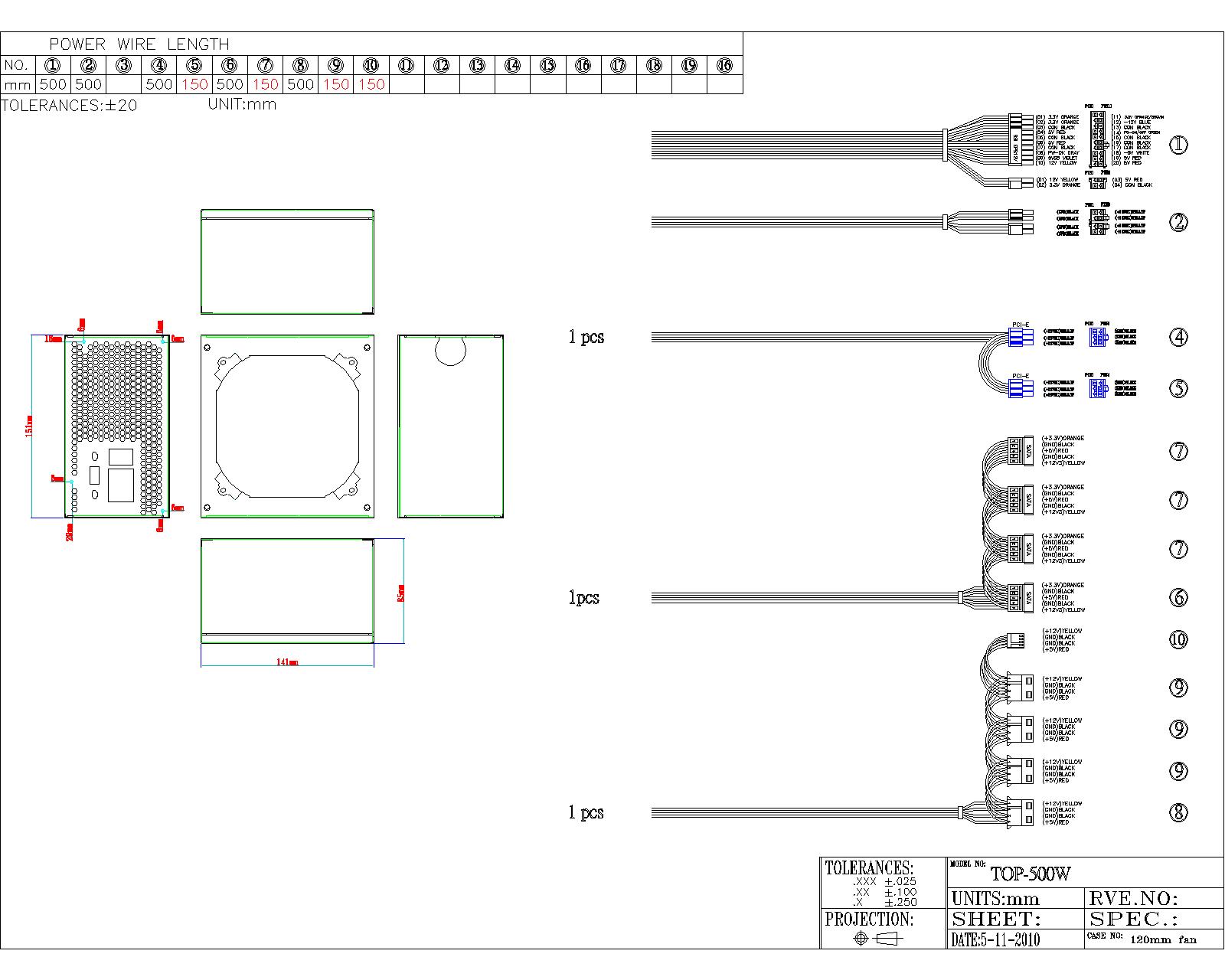

WIRE DIAGRAM:
- Click to Download File -
Click bottom picture for enlarged view






ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
PCI-Express 6 pin
X2
SATA
X4
Molex 4 pin
X4
FDD
X1


CABLE LENGTH:

Number of Cables
Cable
Length (cm)
1
ATX 20+4
50
1
ATX12V/EPS12V
50
1
PCIe
50 , 60
1
SATA
50, 65, 80, 95
1
Molex + FDD
50, 65, 80, 95, 110
