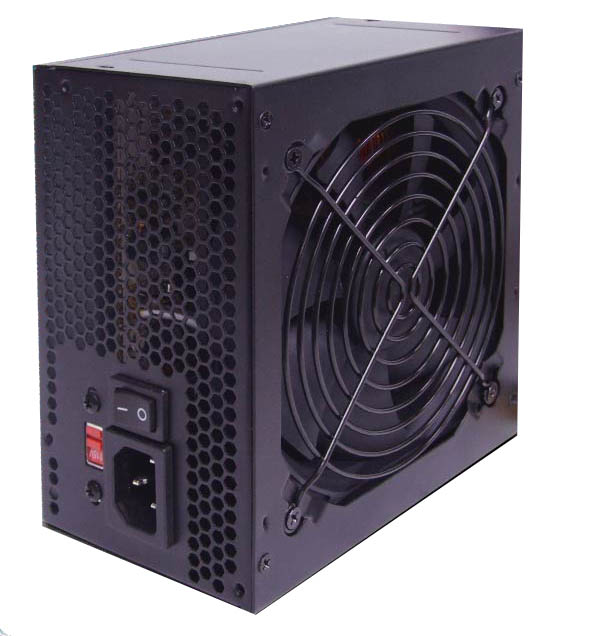

650W Power Supply


TOP-650PM
Click any photo for enlarge picture








  • Features
  • Specifications
  • Cables
  • Form Factor: ATX12V 2.3
  • Maximum Wattage: 650W
  • 140mm Long Life Nano Bearing Cooling Fan
  • Manual AC input switch
  • Low ripple and noise
  • Output over voltage protection
  • Short circuit protection on all outputs
  • Approved by UL, TUV, CB, CE, FCC, RoHs Compliant
  • 100% Hi-Pot Tested
  • 1 year warranty

DIMENSION (L x W x H)

Metric: 150 x 86 x 160 (mm)
US: 6 x 3 3/8 x 6 1/4(inches)
Weight: 5 lbs ( 2.26 kg)

SPECIFICATION:

Input Voltage
115-230V 60/50hz 10-6A
Output Voltage
+3.3V
+5V
+12V1
+12v2
-12V
+5SB
Max Current Output
24A
24A
22A
22A
0.5A
2.5A
Total Wattage
650W

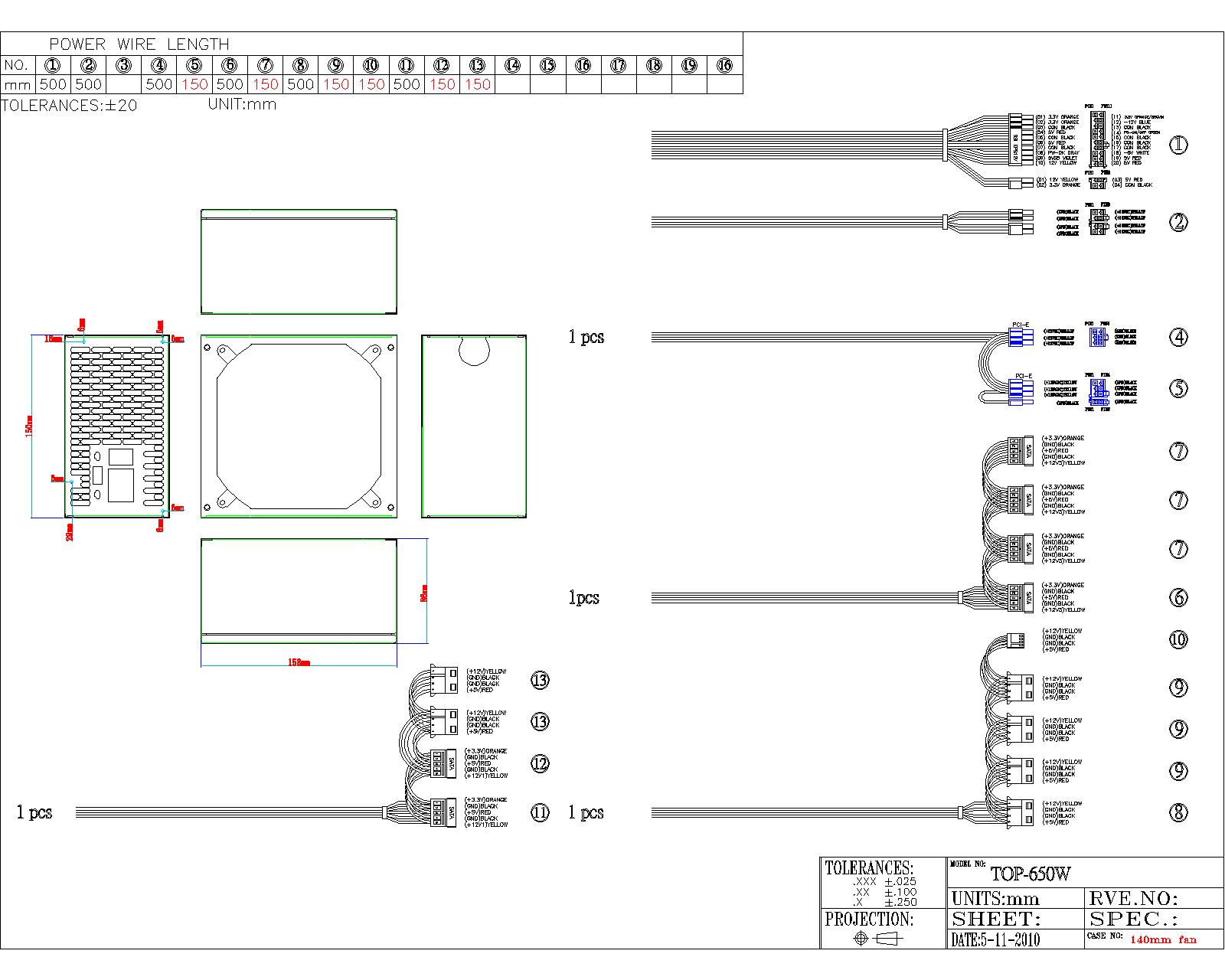

WIRE DIAGRAM:

- Click Here to Download FIle -

Click bottom picture for enlarged view.


ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
PCI-Express 6+2 pin
X1
PCI-Express 6 pin
X1
SATA
X6
Molex 4 pin
X6
FDD
X1


CABLE LENGTH:

Number of Cables
Cable
Length (cm)
1
ATX 20+4
50
1
ATX12V/EPS12V
50
1
PCIe
50 , 60
1
SATA
50, 65, 80, 95
1
2 SATA + 2 Molex
80, 95
1
Molex + FDD
50, 65, 80, 95, 110
