AT 150W Power Supplies

TOP-150A1

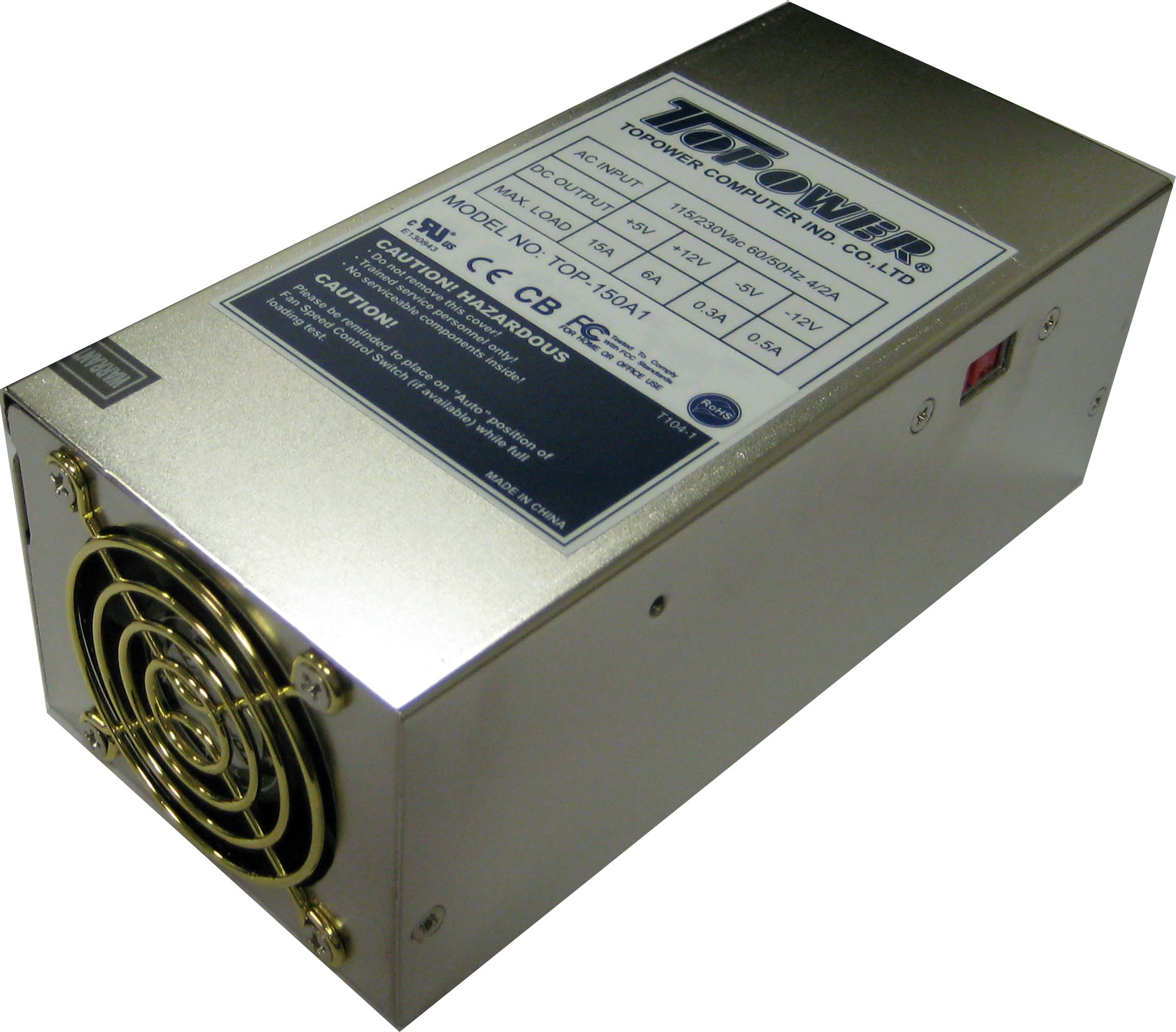

Front

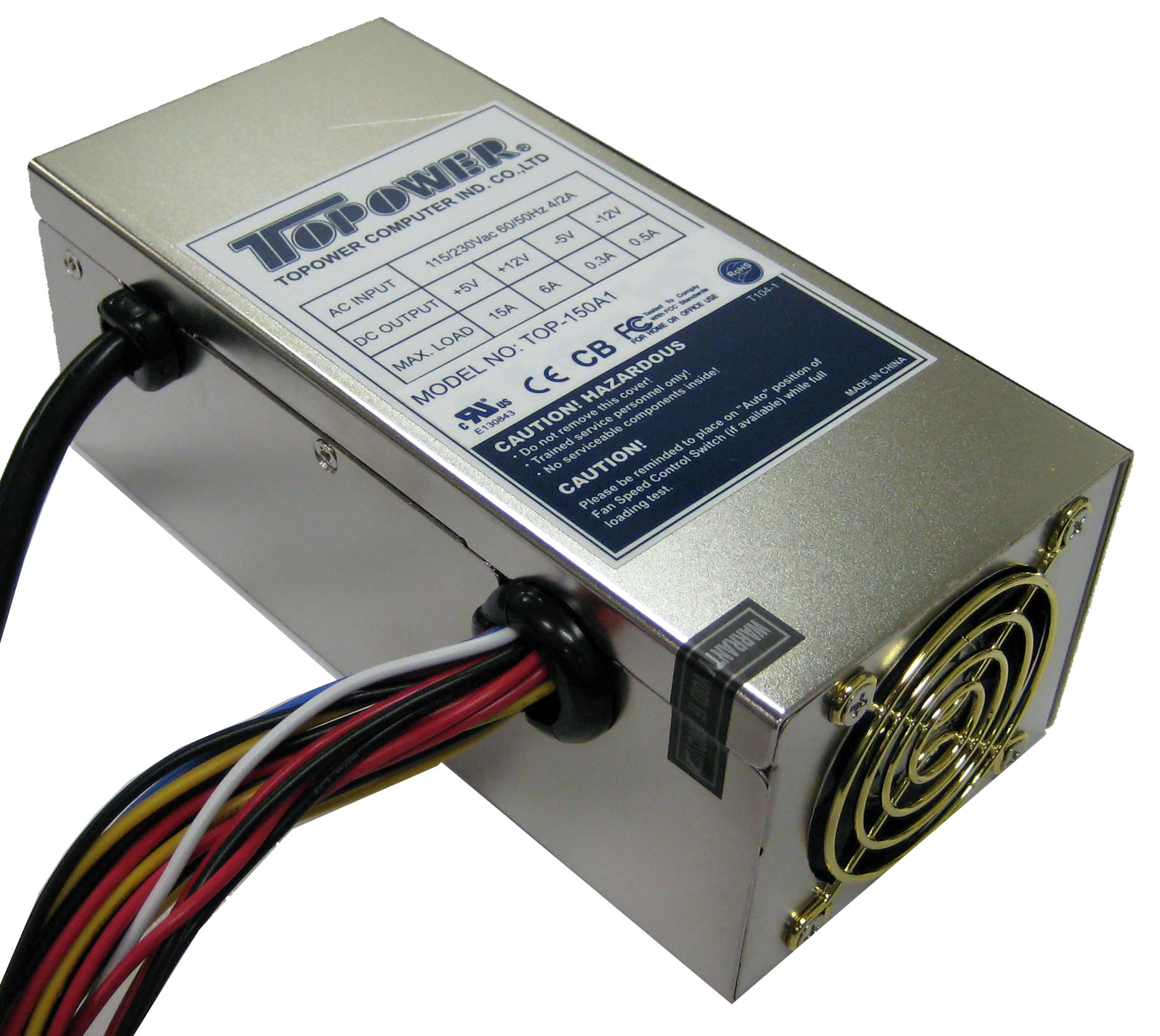

Front / Cable Side

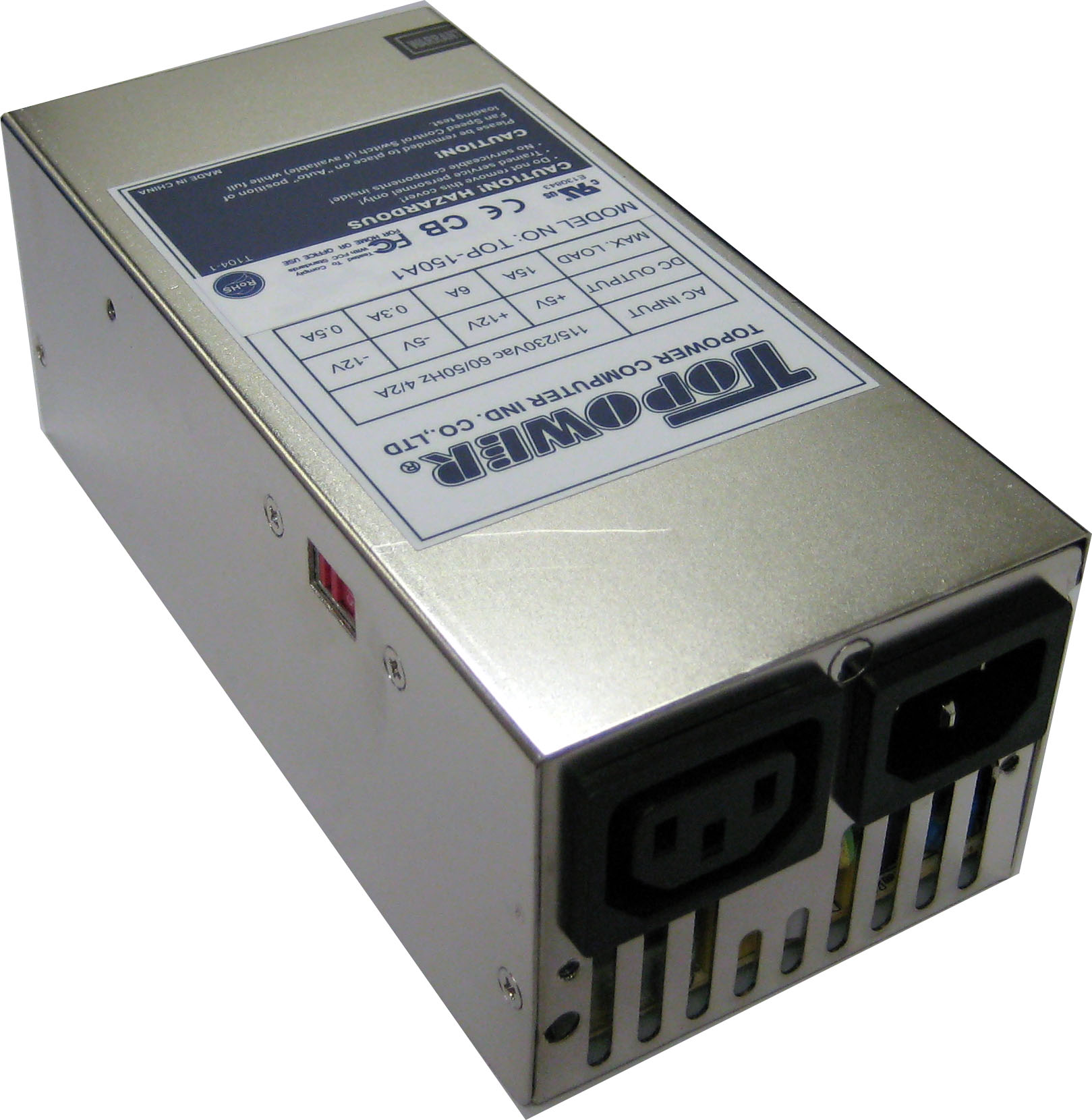

Back / AC Switch

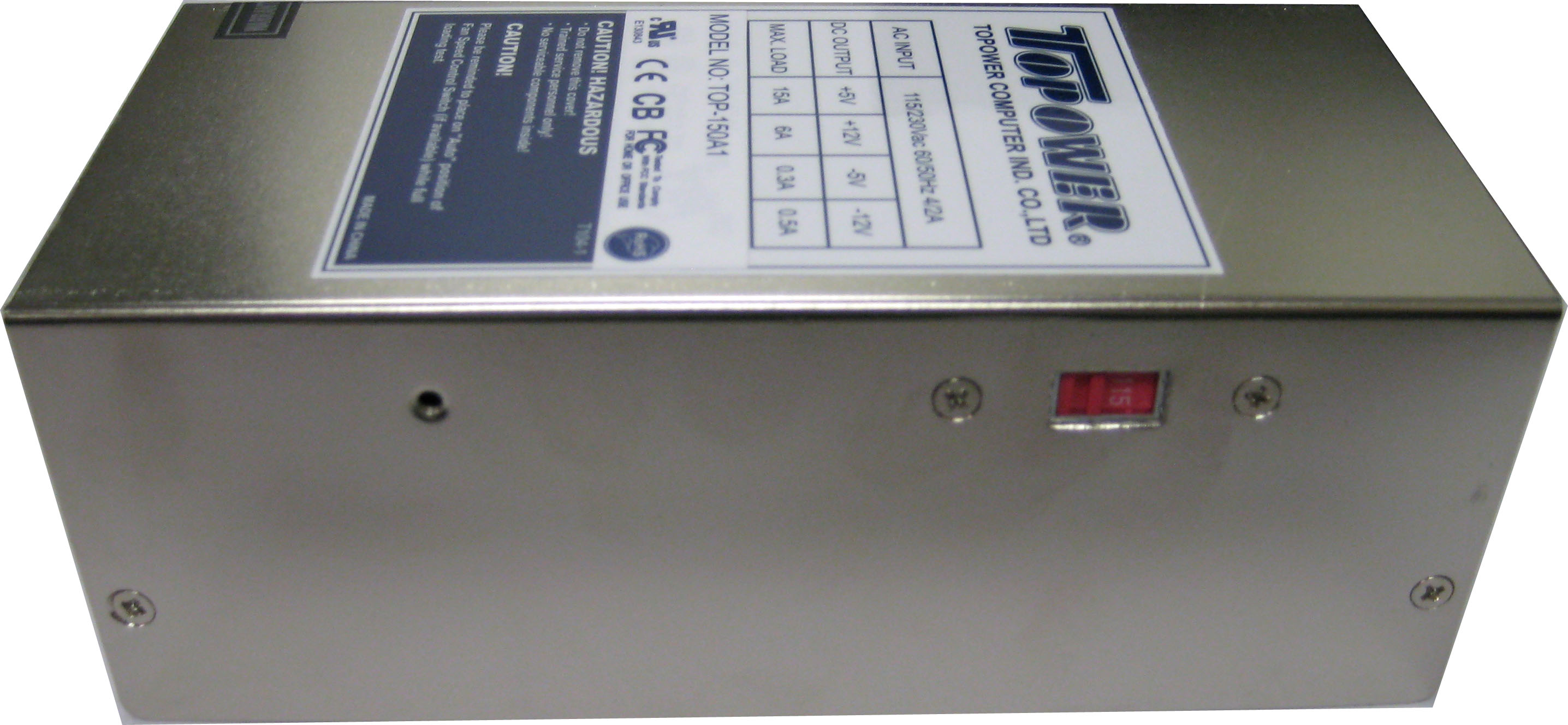

Side AC Switch
( Click on images for larger view )


Form Factor
Slim Case
Dimensions:
( L x W x H )
inch: 6 7/8" x 3 1/3" x 2 7/16"
mm: 174.625 x 79.375 x 61.91
Model No:
TOP-150A1
A/C INPUT
115/230Vac 60/50Hz 4/2a
DC INPUT
+5V
+12V
-5V
-12V
MAX LOAD
15A
6A
0.3A
0.5A

CABLES
I/O SWITCH

1
MOLEX
2
FDD
2
P9
1
P8
1
