TOP-FLEX-300
Photo Gallery

(Click above for enlarged photos)



  • Features
  • Specifications
  • Cables
  • Download
  • High efficiency >80% efficiency from 20%-100%
    load at full range AC input
  • Single 4cm fan with push-pull type airflow solution.
  • Full range AC input with active PFC ob board
  • DC outputs : 3.3V, 5V, 12V1, 12V2, -12V and 5Vsb

DIMENSION (L x W x H)
Dimension :
82mm (W) x 42mm (H) x 150mm(L)
6" in. (W) x 3.25" in. (H) x 1.5" in. (L)
SPECIFICATION:

Input Voltage
100/240Vac4~2A 47+63Hz
Output Voltage
+3.3V
+5V
+12V1
+12V2
-5V
+5SB
Max Current Output
262
16A
16A
16A
0.5A
2.5A
Max output Current
110W
240W
6W
12.5W
Max Combined Wattage
300W

ATX 24pin & 20 pin
X1
ATX 4 pin
X1
SATA
X3
6pin
PCI-Express 6 pin
X1
Molex 4 pin
X2
FDD
X1

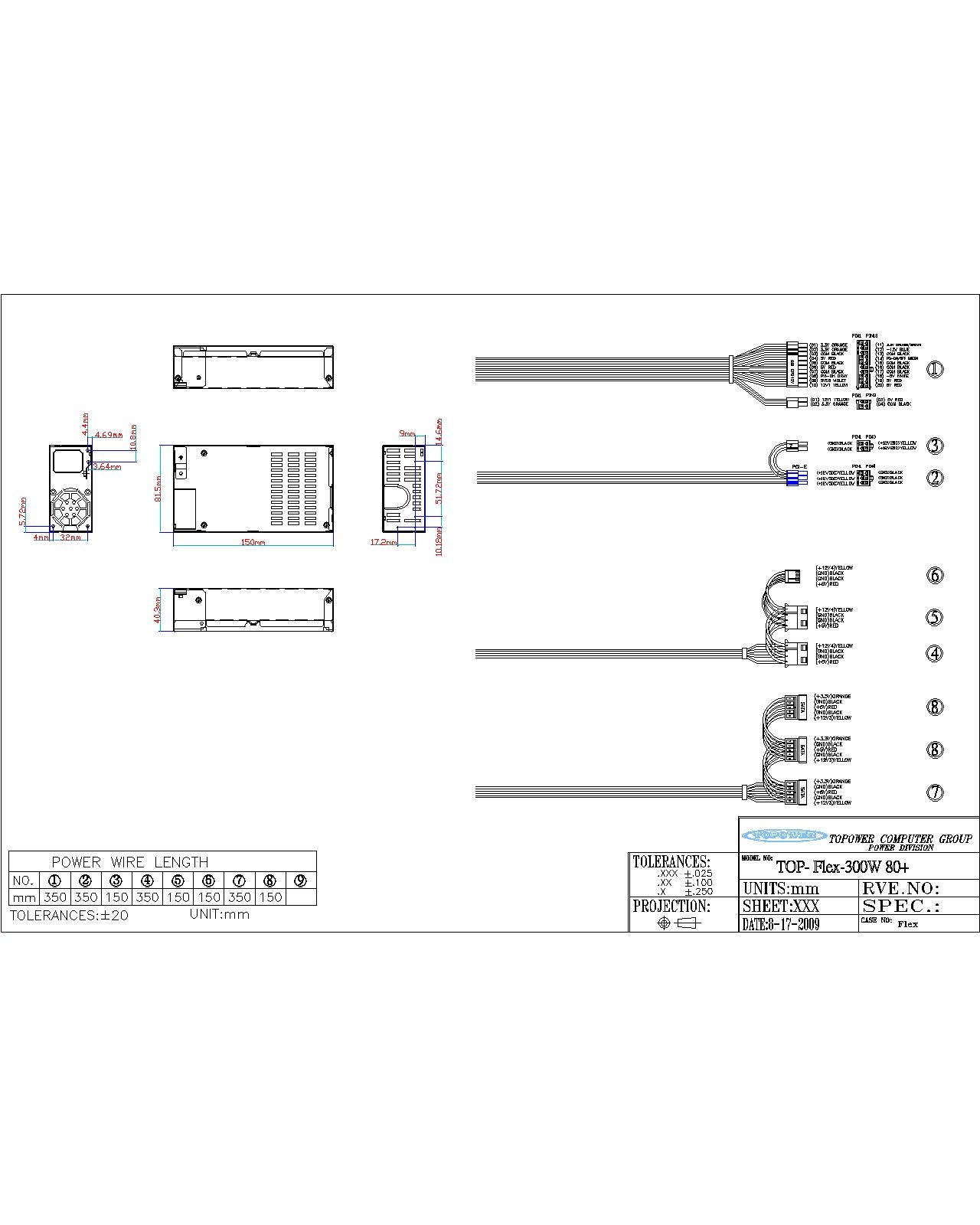

Cable Schematic Drawing : Download
