KC Series 750W Power Supply


TOP-750-KC

  • Features
  • Specifications
  • Cables
KC Series power supply combines true power with performance. KC series is an ideal solution for Gamers, Modders, Server and Power users who demand the very best from their system.
  • 750W ATX 12V Power Supply - Single Rail deisgn

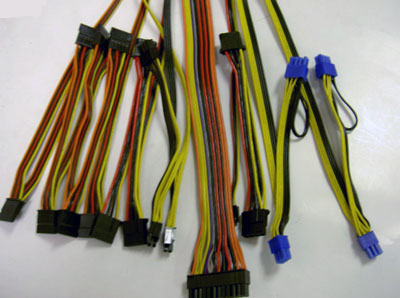

  • Complete Flat Cables
    Hassle free cable managment on all cables for efficient cable routing.
  • Double Bearing Cooling Fan
    Quiet and thermally conrtolled 120mm cooling fan
  • High Efficiency
    +80% energy efficiency at 20%, 50%, and 100% load conditions.
  • High Safety Standards
  • Quad GPU Ready
    Supports latest Single / Multi-Core GPUs in the market.

DIMENSION (L x W x H)

Metric: 160 x 150 x 85 (mm)
US: 5.7 x 5.9 x 3.3 (inches)

SPECIFICATION:

Input Voltage
100-240V 60/50 Hz
Output Voltage
+3.3V
+5V
+12V
-12V
+5SB
Max Current Output
26A
26A
57A
0.8A
3A
Total Wattage
750W

ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
atx_4pin
ATX 8 pin
X1
PCI-Express 6+2 pin
X2
6pin
PCI-Express 6 pin
X2
SATA
X8
Molex 4 pin
X5
FDD
X1
