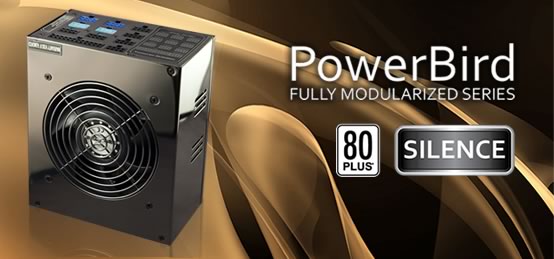

PowerBird 900W PSU provides greatest freedom of cable routing and customization with fully modularized cables, and maximum 87% efficiency. PowerBird is truly a build of craftsmanship that is designed to meet today's most demanding gaming machine and expectations of system builders.

  • Features
  • Details
  • Cables
  • Awards & Reviews
  • Design to support Dual / Quad Core CPU, Intel i7 CPU and NVIDIA SLI
  • ATX 12V 2.3 and EPS 2.92 compliant
  • Fully modularized cable management to eliminate clutter and improve airflow inside the case
  • Guaranteed to deliver rated specifications at 40 Degree C
  • Thermally controlled 120MM double ball-bearing fan from Sanyo Denki
  • High efficiency >80% from 20%-100% load and max 87% efficient at typical load
  • Industrial grade Japanese primary capacitors
  • Full range input 115~240Vac with active power factor correction (PF>0.99)
  • Six 12V rails to provide superior safety and stable current
  • Three 8-pin and three 6-pin PCI-E connectors design supports Multi-GPU Graphic card
  • Safety agency approval / EMI approvals: CE, CB, TUV, FCC, CCC and BSMI certified
  • 3 year Warranty from Topower
Dual main transformers
Balance load sharing Smart Design for High Wattage PSU, Stable 12V current generated by two transformers
powergood

Split / Combine Switch
Split mode meets 240VA limit.
Combine mode to generate maximum 12V current to power hungry systems

Cable Management
Flexible to plug in any bridge
6 sets of 12V rails design
Eliminate clutter and improve airflow inside the case
case coating Mirror - effect coating
Titanium-like mirror coating
Nano technology for shielding EMI
Fiber PCB with double layers
Best flexural strength and dimensional stability
Up to 150ºC utilization temperature
S2M Adapters
Convert SATA connectors to regular molex 4pin
Flexible to use for sorting cable (*Optional*)



Dimensions: (W X H X D) 5.8"X 3.5"X 6.825" (150mm x 86mm x 175mm)

Model Number: TOP-900W
115-240Vac / 15-10A / 50-60Hz

PowerBird 900

Voltage

3.3V

5V

12V1

12V2
12V3
12V4
12V5
12V6

-12V

5Vsb

Max spilt current

30A

30A

19A

19A
19A
19A
19A
19A

1.0A

6.0A
70A

Max combine Power

180W
840W
12W
30W

860W
40W




900W
ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
atx_4pin
ATX 4 pin
X1
PCI-Express 6+2 pin
X2
6pin
PCI-Express 6 pin
X2
SATA
X8
Molex 4 pin
X6
FDD
X1
