Design to support Dual / Quad Core CPU, Intel i7 CPU, and NVIDIA SLi
ATX 12V 2.3 and EPS 2.92 compliant
12V single rail and multiple rail switch
Modularized cable management to eliminate clutter and improve airflow inside the case
Guaranteed to deliver rated specifications at 40 Degree C
Thermally controlled 120MM double ball-bearing fan from Sanyo Denki
High efficiency max 87% at typical load
Industrial grade Japanese primary capacitors
Full range input with active power factor correction (PF>0.99).
Six 12V rails to provide superior safety and stable current
Four 8-pin and Four 6-pin PCI-E connectors design to support AMD Evergreen GPUs.
Safety agency approval / EMI approvals: CE, CB, TUV, FCC, CUL, CCC and BSMI certified.
DImension - L x W x H
175mm x 150mm x 86mm
6.68" in. x 5.90" in. x 3.38" in.

tec
bird Dual main transformers
Balance load sharing
Best for high watt design
12V generted from both transformers
turbosw Turbo Power Switch
Spilt mode to meet 240VA limit.
Combine mode to generate the maximum 12V current
for system maximum.
train
8-Bridge Cable Management
Flexible to plug in any bridge.
Dual 12V rails design.
Eliminate clutter and improve airflow inside the case
bird S2M Adapters
Convert SATA connector to regular molex 4pin
Flexible to use for sorting cable
bird Fiber PCB with Double Layers
Best flexural strength and dimensional stability.
Up to 150º C utilization temperature
bird Mirror-Effect Coating
Titanium-like mirror coating.
Nano technology for shielding EMI.

*Note: 1500W ships with white box & S2M (SATA to Molex Adapter) x 4 pieces.


con

1500W
gray
20
ATX 24pin & 20 pin
X1
gray
8_4
EPS 12V 8-pin
X2
gray
atx4
ATX 4 pin
X1
gray
6_2
PCI-Express 6+2 pin
X4
gray
6pin
PCI-Express 6 pin
X4
gray
sata
SATA
X12
grat
4
Molex 4 pin
X3
gra
fdd
FDD
X1

tec
115-240V 18-10A / 50-60Hz

PowerTrain 1500

Voltage

3.3V

5V

12V1

12V2 12V3 12V4 12V5 12V6

-12V

5Vsb

Min split current

0.5A

0.5A

0.5A

0.5A
0.5A
0.5A
0.5A
0.5A
0.1A

0.1A

Max split current
30A
30A
20A
20A
20A
20A
20A
20A
1.0A
6.0A

Max combine power

200W
1360W
12W
30W
1460W
40W
Total Power
1500W

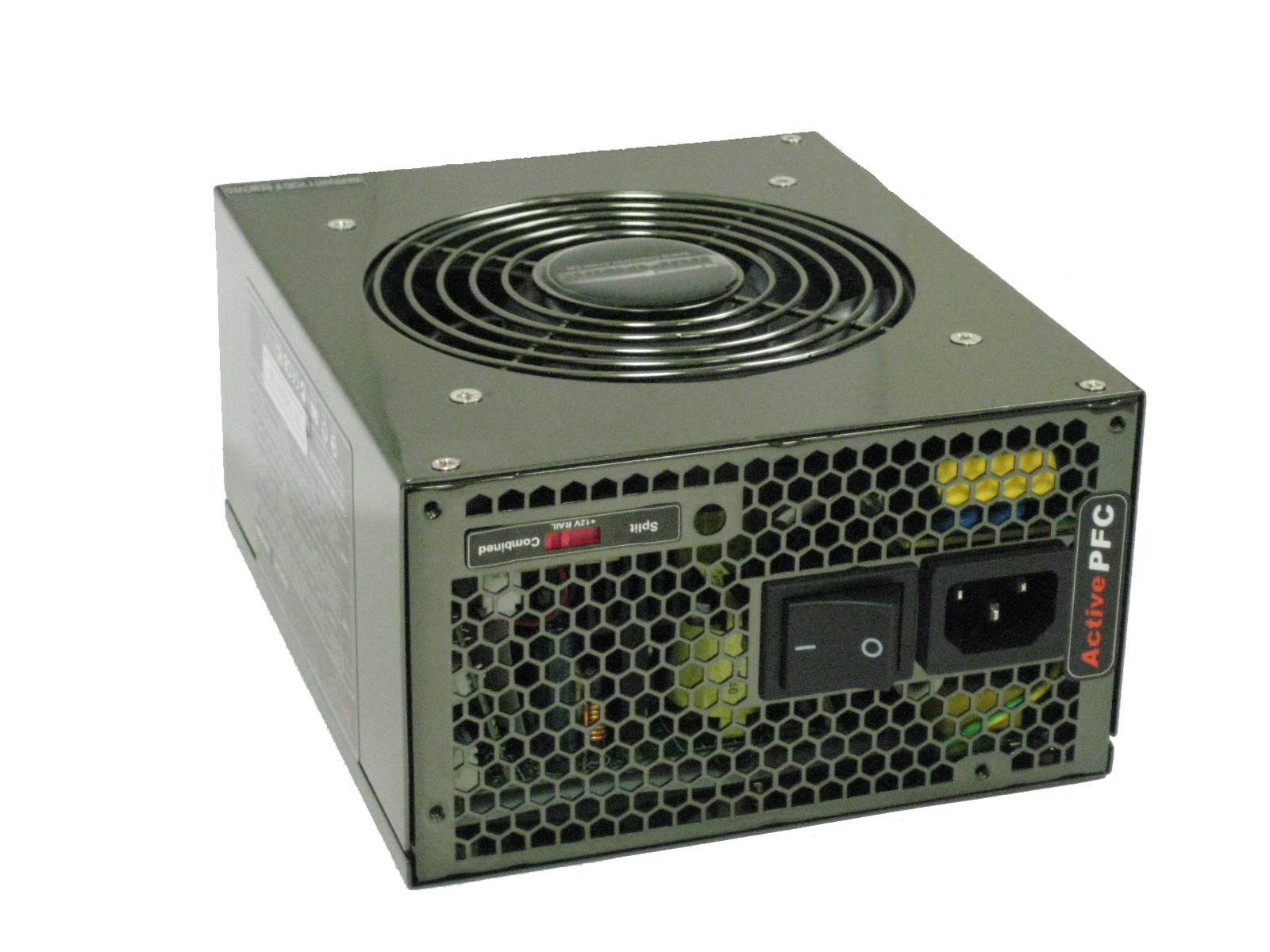

angle
train
enlarge

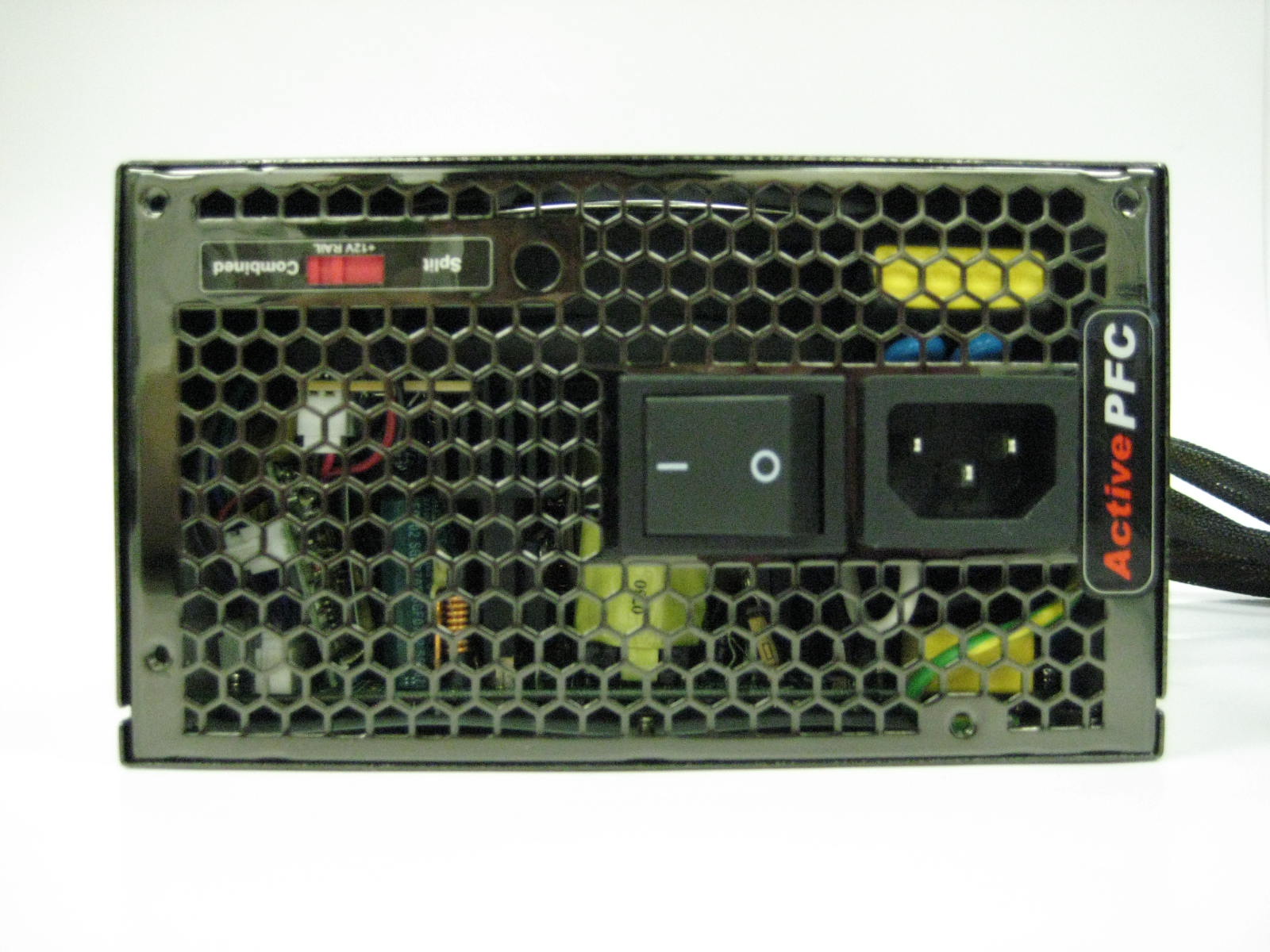

front
train
enlarge

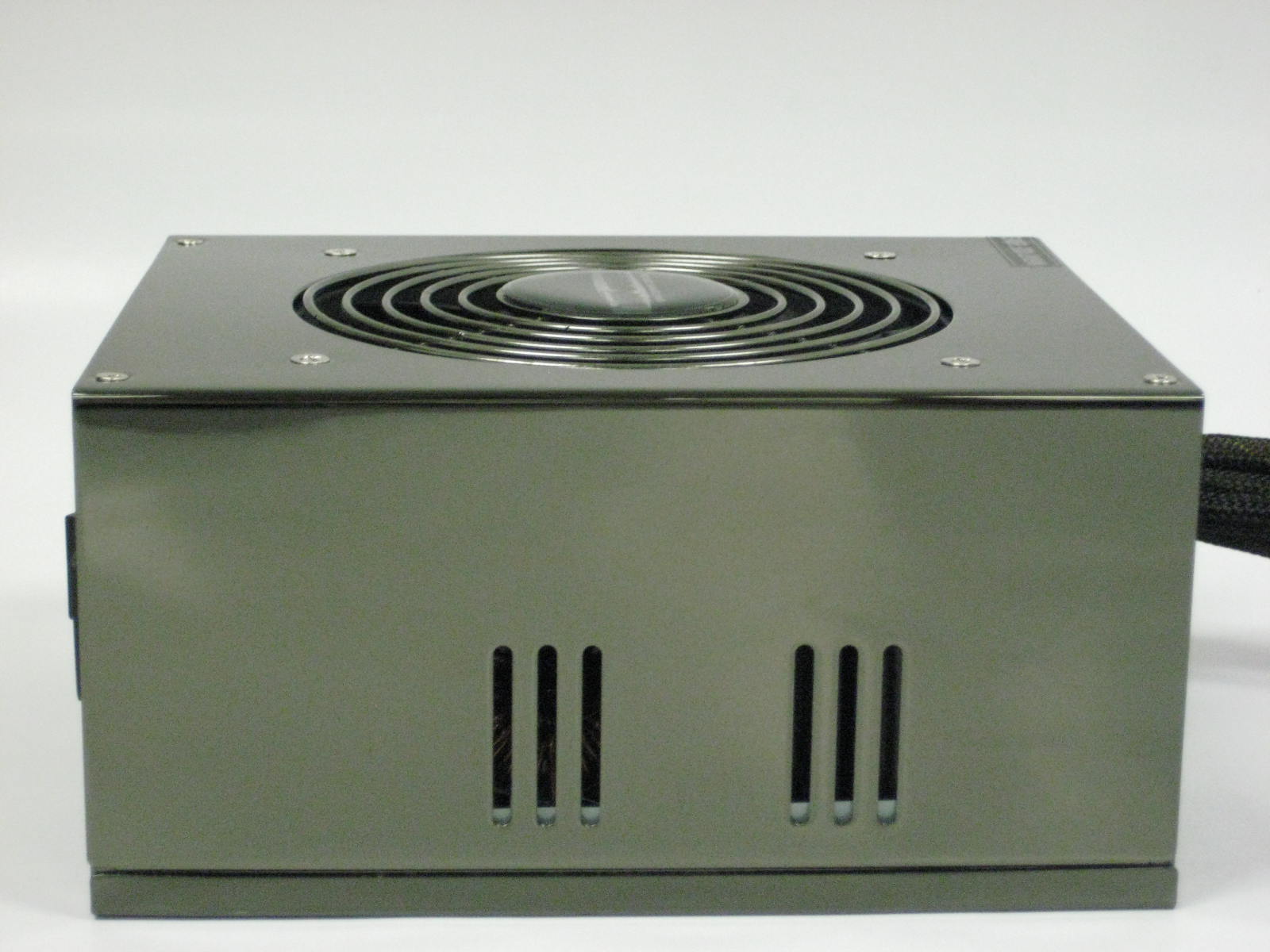

side
train
enlarge

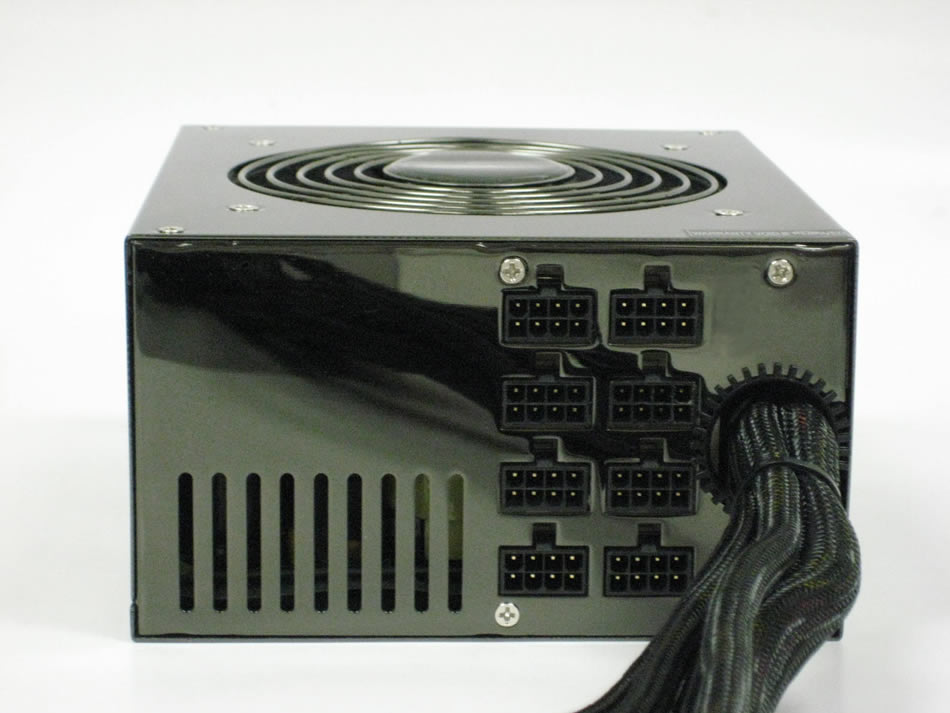

back
train
enlarge

top
train
enlarge
