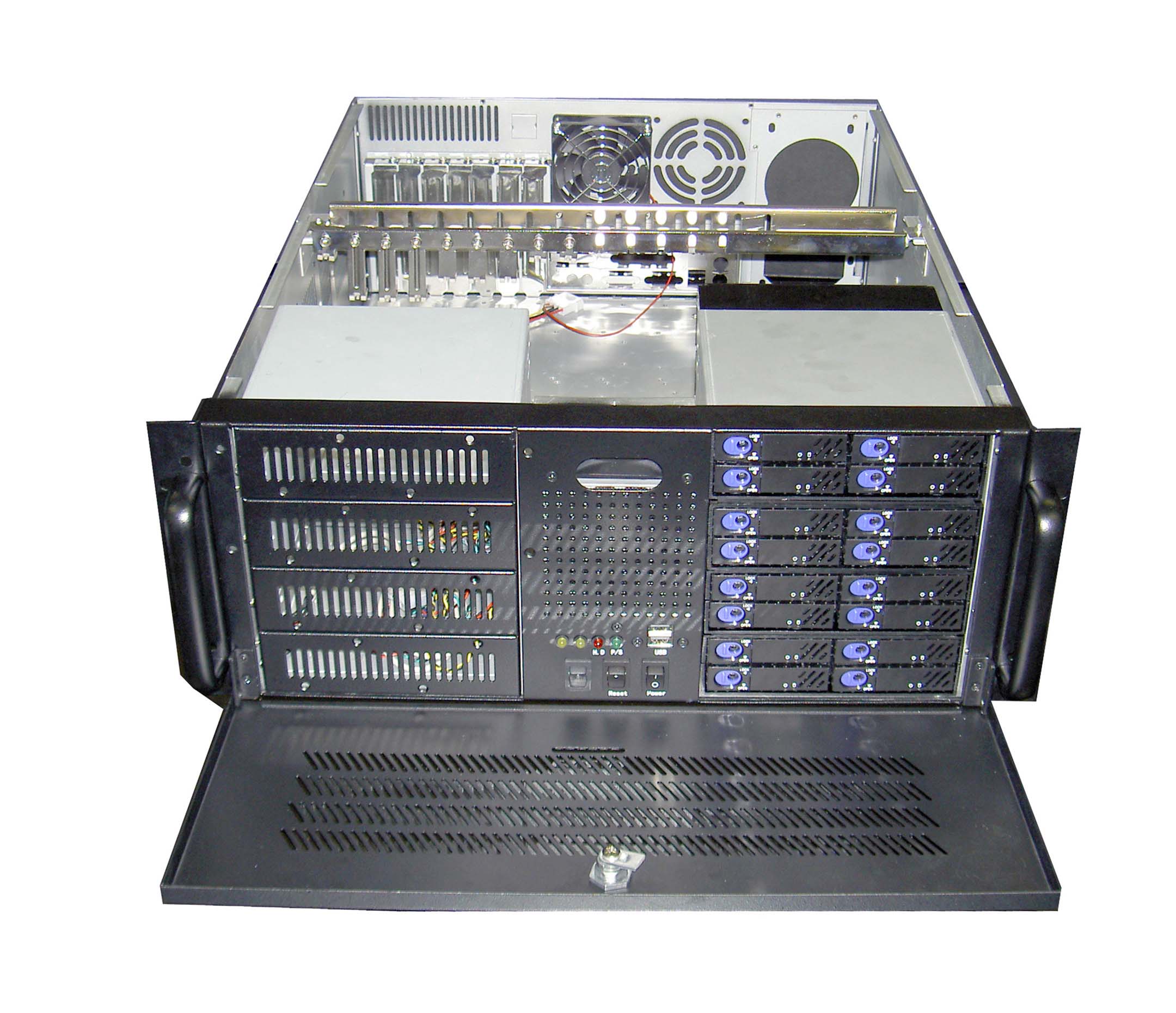

(Click on image to enlarge)
|
DESCRIPTION:
- 4U Chassis will fit most rackmount server case needs

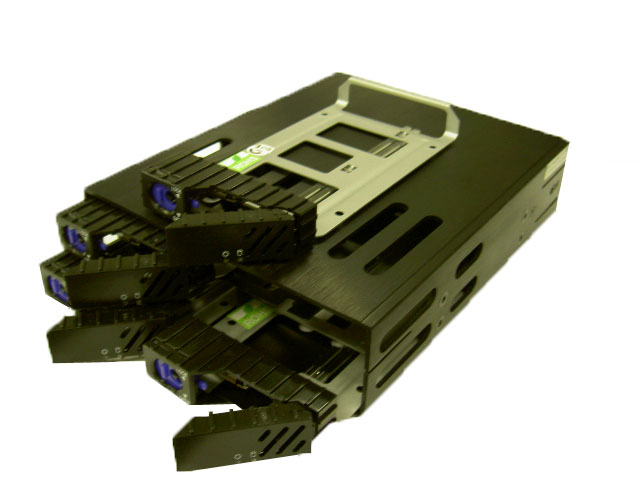

- 16 Hot Swappable SATA ONLY Modules
- SATA cables included
- Case is designed to tough environment and high capacity in the market
- Features frontal USB access, fan mount, and optional fan sensor board.
- System board: 12" x 10.5" PC / AT / ATX
- Air filter provided is washable
DIMENSION (L x W x H)
Metric: 450 mm X 483 mm X 178mm
US: 17.7"(L) X 19"(W) X 7"(H)
Weight: 29 lbs
SPECIFICATION:
Power Supply |
AT, ATX, Redundant |
Capacity Bays |
4 x 5.25" external & 16 x 2.5" Hot Swappable SATA HD Bays
Optional 2 x 3.50" HDD Bays |
Indicators |
LEDSs: Power ON / OFF, HDD |
Switches |
Reset, Power, Fan Alarm |
USB |
2 Front USB Ports |
Fan Control Card |
4 Fans (optional) |
System Board |
12" x 10.5" |
Fans |
2 x 8cm Fans
3 x 8cm Fans (optional)
|
Schematic Drawing:
Click drawing for full view
click this for the drawing file (*.dwg)
|
|
Power supply
Please email us at:
