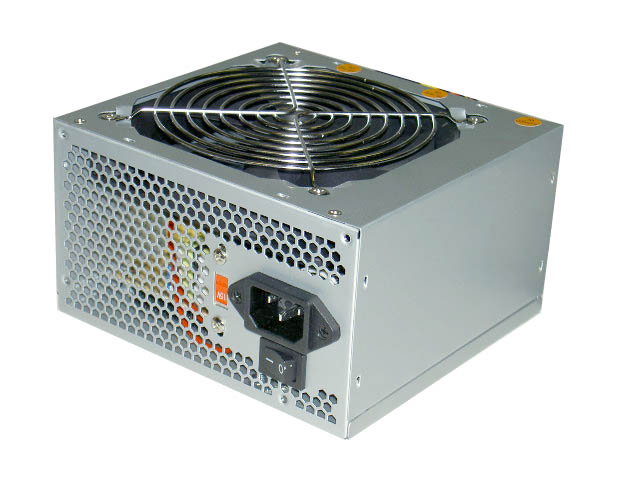

EP-350W TS-SeriesPower Supply
  • EP-350WTS

  • Features
  • Specifications
  • Cables
  • Additional Photos
  • Single 120mm Cooling Fan
  • Intel ATX 12V 2.3 and EPS
  • Extra long cables for large cases
  • Support Dual Core CPU, Quad Core CPU
  • Multi 12V rails design to provide superior performance
  • Safety agency approval: CE, CB, TU, CUL
EP-350WTS
Cable Details
Cable Length
millimeters
inches

20 + 4 Pin

540
21.25"
4 + 4 Pin
540
21.25"
Molex
540
21.25"
SATA
550
21.65"

*Measured from base to first connector then to second connector*

DIMENSION (L x W x H)

Metric: 150 x 140 x 85 (mm)
US: 5.90 x 5.51 x 3.34 (inches)
Weight : 4 lb

SPECIFICATION:

Input Voltage
Selector: 115V-230V
5.0A 60/50 Hz
Output Voltage
+3.3V
+5V
+12V
-12V
-5V
+5SB
Max Current Output
21A
21A
11A
1A
0.3A
2.5A
Total Wattage
350W

ATX 24pin & 20 pin
X1
ATX 4+4 pin
X1
SATA
X4
Molex 4 pin
X4
FDD
X1



(*Click on any photos above for larger image*)
