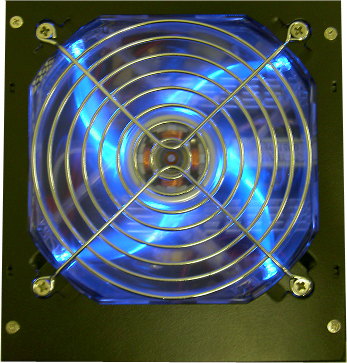

• Single Blue LED 120mm Cooling Fan
• Intel ATX 12V 2.3 and EPS
• Extra long cables for large cases
• Support Dual Core CPU, Quad Core CPU
• Multi 12V rails design to provide superior performance
• Safety agency approval: CE, CB, TUV

EP-600WTS
Cable Details	Cable Length
	millimeters	inches
20 + 4 Pin	540	21.25"
4 + 4 Pin	540	21.25"
PCI-E 6 Pin	540	21.25"
PCI-E 6+2 Pin	540	21.25"
Molex	540	21.25"
SATA	550	21.65"

*Measured from base to first connector then to second connector*

DIMENSION (L x W x H)

Metric: 150 x 140 x 85 (mm)
US: 5.90 x 5.51 x 3.34 (inches)
Weight : 4 lb

SPECIFICATION:

Input Voltage	Selector: 115V-230V 10/6A 60/50 Hz
Output Voltage	+3.3V	+5V	+12V	-12V	-5V	+5SB
Max Current Output	28A	57A	33A	1A	0.8A	2.5A
Total Wattage	600W

ATX 24pin & 20 pin X1 ATX 4+4 pin X1 SATA X6 PCI-Express 6 pin X1 PCI-Express 6+2 pin X1 Molex 4 pin X6 FDD X1

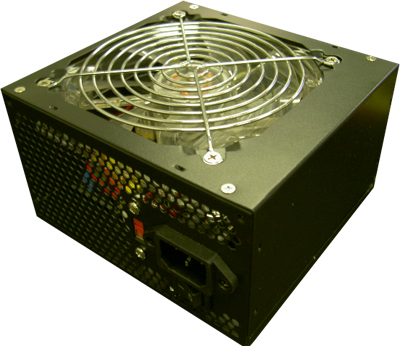

(*Click on any photos above for larger image*)
