Specifications



*









40x40x20(mm)
60x60x15(mm)
60x60x25(mm)
70x70x15(mm)
70x70x25(mm)
80x80x15(mm)
80x80x20(mm)
80x80x25(mm)
80x80x25(mm)-LED
92x92x25(mm)
92x92x25(mm)-LED
95x95x25(mm)
120x120x25(mm)
120x120x25(mm)-LED
135x135x25(mm)
135x135x25(mm)-LED
140x140x25(mm)
140x140x25(mm)-LED

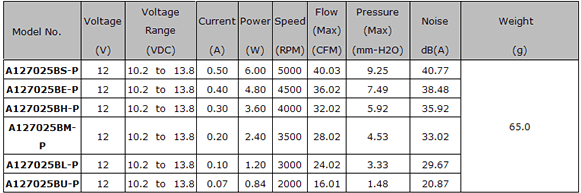

70x70x15(mm)


•Impeller Material PBT-Black
•Frame Material PBT-Black
•Frame Size 70*70*15 mm
•Bearing system NanoTek Bearing
•Water & Dust proof IP 5/6
•LED Option
•PWM Option
•FG control ( Frequency Generator) Yes
•Auto-Restart Yes
•Starting voltage < 3 Vdc
•Lead Wires

UL 1007 AWG 24 or equivalent.
Red:+, Black:-, Sensor: Yellow or White
